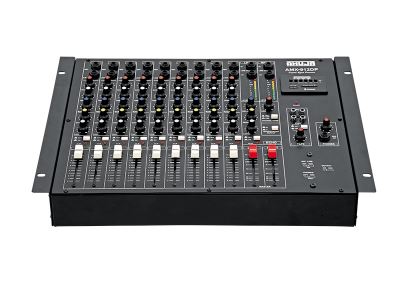

Ahuja AMX 912DP Mixer (9 Channel)
₹16,165.00
“9‑channel mixer‑amplifier with built‑in MP3/USB/SD playback, digital echo effects, per‑channel gain/Bass/Treble/Echo/Pan/level controls with clip LEDs, headphone monitoring, stereo RCA I/O, AC + 24 V DC backup—all in a rugged 6.9 kg desktop/19″ rack chassis.”
- Input Channels: Each Channel has separate 6.3mm (1/4”) balanced phone jack for Mic & Line which accepts both balanced & unbalanced signals.
- USB Playback: Built-in MP3 Player selectable through Channel 9/USB Switch and controllable through an independant USB input volume control. Channel 9 can be used for Mic & Line inputs or USB Playback function.
- Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in ‘Mono’ position.
- Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls.
- Stereo RCA IN/OUT for record and playback.
- Headphone output with Level Control for output monitoring.
POWER REQUIREMENTS AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery) MIC INPUT (Impedance/Gain) 2kΩ/62dB LINE INPUT (Impedance/Gain) 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB DISTORTION < 0.08% FREQUENCY RESPONSE 30Hz – 20kHz (+0, -1dB) TONE CONTROLS Bass : ±12dB at 100Hz, Treble : ± 12dB at 10kHz OUTPUT Line Output LO: -10dBu/+2dBu (200mV/1V), Line Output HI: 0dBu/+17dBu (775mV/5.5V) DELAY SYSTEM Digital Signal Processing DIGITAL PLAYER MP3 Player with USB, SD and MMC Card Reader SIGNAL TO NOISE RATIO >70dB (0dBm, 0.775V) DIMENSIONS W483 × H93 × D366 mm WEIGHT 6.90kg
