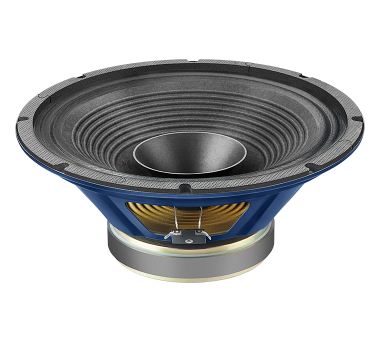

Features of Ahuja DZ12-F200 Professional PA Speaker
– Ahuja DZ12-F200
– 200 WATTS
– Professional PA Speaker
– 12” dual cone speaker with wide spectrum frequency response.
– High quality specially designed imported cones and spider for extremely clear, low distortion sound reproduction.
– Impedance of DZ12-F200 is 16Ω.
– 2” CCAW voice coil with high temperature rating for safe, reliable operation.
– 4.16kg
– 12 Months Warranty
SPECIFICATIONS: Brand Ahuja Model DZ12-F200 Power Rating 200W RMS Nominal Diameter 305 mm (12”) Nominal Impedance 8Ω/16Ω Sensitivity (1W/1m ) 97dB Magnet Weight 1.16kg Resonant FrequenceY(Fs) 50Hz DC Resistance (Re) 6.8Ω/13.0Ω Electromagnetic Q (Qes) 0.92 Mechanical Q (Qms) 3.26 Total Q (Qts) 0.72 Surface Area of Cone(Sd) 510cm2 Reference Efficiency (ηo) 3.6% Voice Coil Diameter 2.0” Overhang(Xmax) 2.5 mm Moving Mass(Mms) 36.7gm BL Product (BL) 11.2TM Coil Inductance (Le) 0.69mH Overall Diameter 313mm Depth 127 mm Baffle Hole Diameter 285 mm Bolt Mount Diameter (PCD) 295 mm (8 Bolts) Weight 4.16 Warrning.
