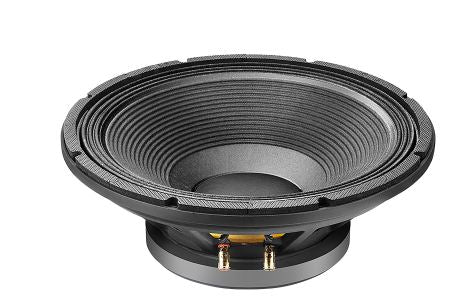

Ahuja Professional PA SpeakerModel L15 MB500

Features of Ahuja L15-MB500 Professional PA Speaker
– Ahuja L15-MB500
– 500 WATTS
– Professional PA Speaker
– Extended low frequency, ideal for Cinema Screen and for use in professional high power full range speaker systems.
– Aluminium die-cast frame with gold plated push type heavy duty terminals.
– GLASS FIBRE former voice coil for withstanding high temperature.
– 4” Edge-wound copper wire voice coil for higher SPL.
– 9.0kg
– 12 Months Warranty

SPECIFICATIONS: BRAND Ahuja Model L15-MB500 Power Rating 500W RMS Nominal Diameter 380 mm (15”) Nominal Impedance 8Ω Sensitivity (1W/1m ) 97dB Magnet Weight 2.85kg Resonant FrequenceY(Fs) 33Hz DC Resistance (Re) 5Ω Electromagnetic Q (Qes) 0.34 Mechanical Q (Qms) 4.32 Total Q (Qts) 0.32 Compliance Equivalent Volume(VAS) 221Litr Surface Area of Cone(Sd) 830cm2 Reference Efficiency (ηo) 2.28% Voice Coil 4.0” Moving Mass(Mms) 107.17gm BL Product (BL) 18TM Coil Inductance (Le) 1.09mH Overall Diameter 387mm Depth 158 mm Baffle Hole Diameter 354 mm Bolt Mount Diameter (PCD) 369 mm (8 Bolts) Weight 9.0Kg Warranty 12 Months
