AKG WMS470 Sports Set Wireless Microphone System – Channel 70 (Band D)The AKG WMS470 Sports Set Wireless Microphone System is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Sport Set includes a PT470 body-pack transmitter in a compact and rugged housing. The package also enclose a C544 L condenser head-worn microphone featuring a cardioid polar pattern and an external shock mount for high mechanical-noise rejection. Its moisture shield ensures a high degree of humidity protection for the microphone.

AKG WMS470 Sports Set Wireless Microphone System Features
AKG SR470 Radio Microphone Receiver Features

– Environment scan and rehearsal functions For secure operation even in crowded radio frequency environments
– Programmable multicolor backlight display Clear visual information of selectable warning signals
– External antenna connectors Connect splitters, remote antennas and long cable runs to multi channel systems
– Enhanced automatic setup with channel preview For quick and easy system setup
– Pre-coordinated TV channel frequency presets Maximum channel density for multichannel systems

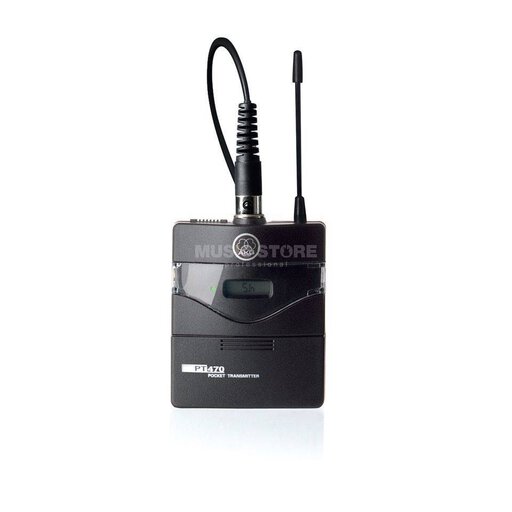

AKG PT470 Body Pack Transmitter Features

– External mute switch connector For remote muting of the microphone
– Integrated charging contacts For charging of a standard NiMH battery inside the transmitter
– Infrared synchronization For instant transmitter setup
– Pilot tone transmission For transmitter battery status monitoring and tone code squelch
– Compact, rugged body-pack design For maximum wearing comfort

AKG C544 L Headworn Moisture Resisting Sports Microphone with 3-Pin Mini-XLR Features

– Flexible shock mount For efficient suppression of mechanical and body noise
– Moisture shield Ensuring a dry microphone capsule
– Includes four drop rings For sweat and water protection
– Fully rugged sports headband For secure fit in all situations and movements
– Cardioid polar pattern For problem-free use with high ambient noise rejection

AKG WMS470 Sports Set Wireless Microphone System Specifications
– Carrier Frequency Range: Channel 70 / Band D, 863 – 865 MHz (License Free)

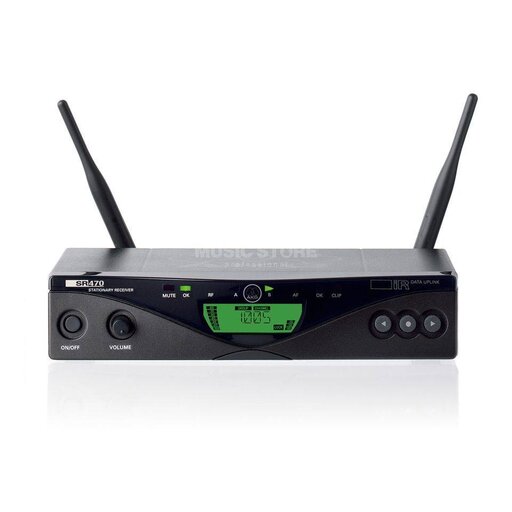

AKG SR470 Radio Microphone Receiver Specifications

– Switching bandwidth: 30.5 MHz (depending on local regulations)
– Modulation: FM
– Sensitivity: 6 dBµV / -100 dBm
– Receiver type: Super heterodyne
– Diversity system: µC controlled space diversity
– Audio bandwidth: 35 to 20,000 Hz
– THD at 1 kHz: <0.3%
– Signal-to-noise: 120 dB(A)
– Audio outputs:
– Balanced XLR, switchable to -30 or 0 dBm
– Unbalanced 6.35 mm (¼-inch) Jack
– Audio output level: +9 dBu (max.)
– Antenna inputs: 2x 50Ω BNC female connectors
– Transmitter battery indication: Low Battery
– Power supply: 12 V / 500 mA DC
