Product no: 9000-0035-4062Bax Music Warranty: This product comes with a 3-year warranty.
General

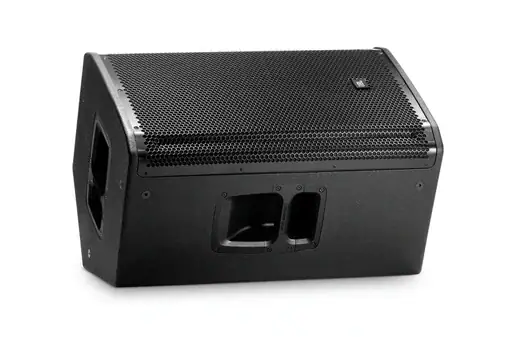

The versatile SRX815 2-way speaker by JBL is a must-have in your PA setup. It has a 15-inch woofer and it can be used in either passive or bi-amp mode. The latter means the tweeter is separated from the woofer to allow the internal crossover to do its job, which is especially handy when employing multiple speakers. The SRX815 can produce a lot of noise and boasts a maximum SPL of 135 dB. With a frequency range of 41 Hz to 20 kHz, you’ve got a great full-range cabinet at your disposal that provides outstanding results, especially when used with other Harman products.
On the floor, on a stand, or from the ceiling
Not only are the SRX815’s technical specifications impressive, it’s also a very versatile unit. You can connect it up to an amplifier or an active speaker or a subwoofer, for instance, and in terms of placement, anything is possible. Place it on a stand or on top of another speaker, on a distance rod either straight or at an angle, from the ceiling by using the three M10 rigging points, or on stage as a floor monitor. This speaker has three recessed handles for easy manageability.
Specifications
Product features
| Sustainable product | not specified |
|---|---|
| Speaker connection | locking speaker |
| Nominal impedance | 8 ohms |
| RMS capacity in watts | 1,500 – 3,000 W |
| Peak power in watts | > 3,000 watts |
| Mid driver/woofer diameter | 15 inches |
| Tweeter diameter | 3 inches |
| Weight per speaker | 26 kg |
| Maximum SPL | 130 dB – 139 dB |
| Minimum frequency | 40 – 49 Hz |
| Maximum frequency | 20 – 20.9 kHz |
| Sensitivity | 95 dB |
| Set | no |
| Installation speaker / 100 V | no |
| Speaker cabinet material | wood |
Weight and dimensions including packaging
| Weight (incl. packaging) | 30,4 kg |
|---|---|
| Dimensions (incl. packaging) | 75,0 x 60,0 x 58,0 cm |
Product specifications
- JBL SRX815
- passive 2-way speaker
- bass reflex port
- can be used in passive or bi-amp mode
- technical information
- woofer: 2275H, 15 in
- tweeter: 2432H, horn-loaded
- output capacity: 800 W (continuous), 1600 W (program), 3200 W (peak)
- frequency response: 41 Hz – 20 kHz
- crossover frequency: 1.9 kHz
- sensitivity: 95 dB
- impedance: 8 ohms
- max SPL: 136 dB
- dispersion angle: 90 x 50°
- monitor angle: 50°
- connections: 2x SpeakOn
- cabinet:
- material: 18mm plywood with Obsidian Duraflex finish
- handles: 3x recessed
- grille: perforated steel with black acoustic speaker cloth
- stand flange: 2x 36 mm
- rigging points: 3x M10
- dimensions: 478 x 458 x 691 mm
- weight: 25.9 kg
