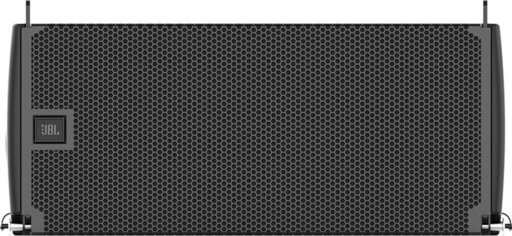

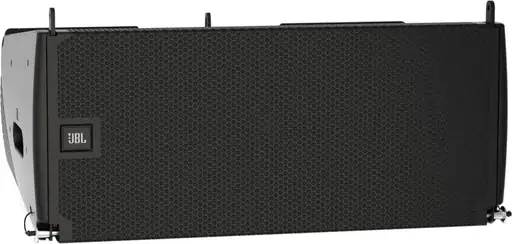

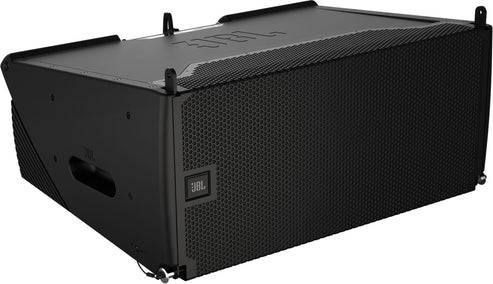

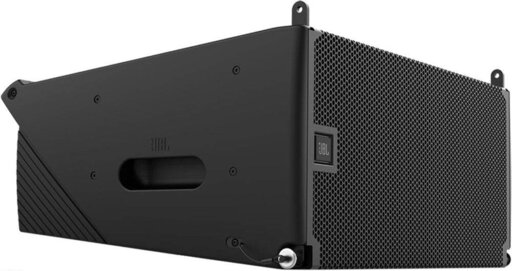

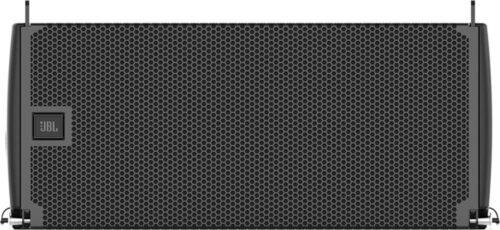

JBL SRX910LA Dual 10-Inch Powered Line Array Speaker, 2-Way, 105-Degree
The SRX900 Series embodies the advanced performance principles that drive JBL’s development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability. The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.
Features:
- High-performance, high-density system solution in a truck-pack friendly format
- High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
- Built-in, passively cooled Class D amplification with a universal power supply
- Dual Ethernet ports with Neutrik etherCON connectors
- Supports HARMAN HControl Ethernet
- User-controllable DSP
- LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
- Rear-panel LCD provides complete access to control features
- Reinforced composite loudspeaker enclosures
- Innovative three-point rigging system
Specifications:
- Frequency Range (-10dB): 53 Hz-19 kHz (array preset)
- Coverage Pattern: 105 degrees nominal (400 Hz-16 kHz)
- Maximum SPL: 135 dB
- System Type: Line Array, two-way active
- Amplifier Design: Class-D
- Continuous Power Rating: 600 Watts | LF: 400 Watts | HF: 200 Watts
- LF Driver: (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
- HF Driver: (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
- Enclosure: Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
- Inter-Enclosure Angles: 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
- Dimensions (H x W x D): 305 mm x 716 mm x 519 mm (12.0 in x 28.2 in x 20.5 in)
- Net Weight (each): 26.7 kg (59 lbs)
