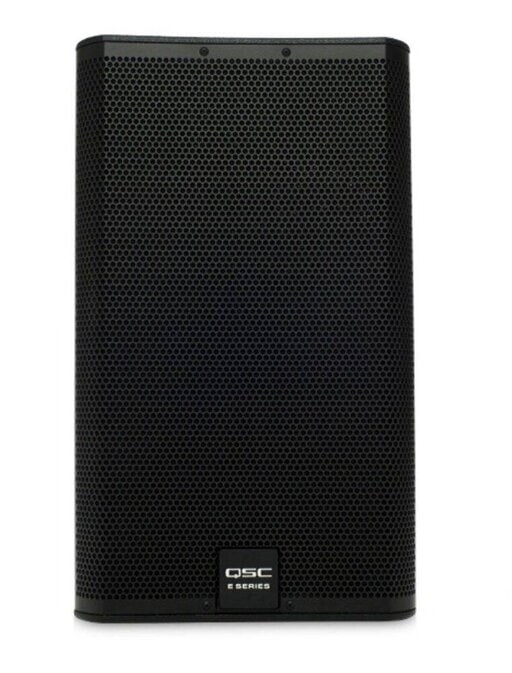

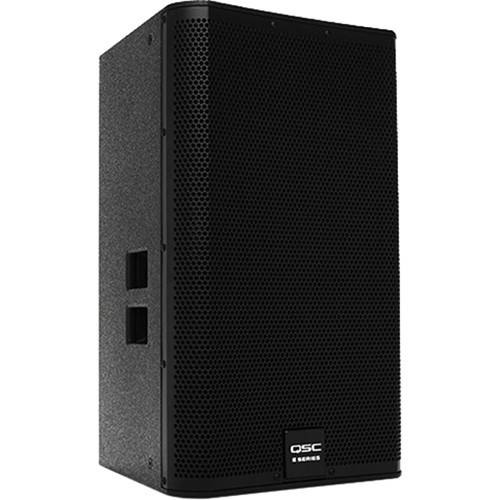

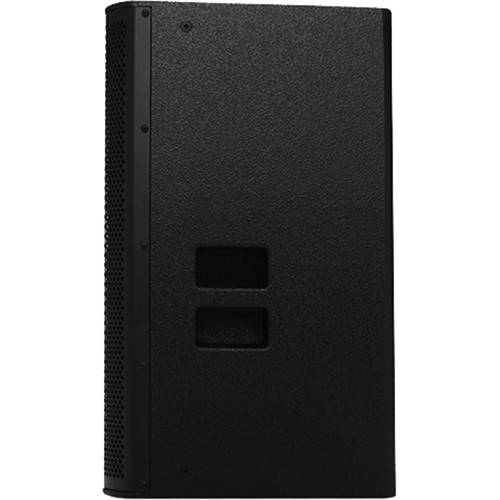

QSC E115 – 2000W 15″ 2-Way Passive Loudspeaker

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8″ compression driver attached to the 75� DMTTM waveguide assures that even distant listeners will be well covered.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

• High output, professional quality sound with E115 – 500 W continuous power
• E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
• Titanium diaphragm for high fidelity and long life
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Available U-Style Yoke and M10 rigging kit for permanent installation
• Dual angle pole socket

Specifications

• Configuration: 15″ 2-way non-powered loudspeaker
• Frequency Response (-6 dB): 55 Hz – 20 kHz
• Frequency Range (-10 dB): 43 Hz – 20 kHz
• Power Capacity: 500W continuous / 2000W peak
• Sensitivity: 97 dB, 1W @ 1 m
• Coverage Angle: 75� conical DMT
• Output: 130 dB (peak SPL @ 1 m)
• Drivers:
  • LF: 15″ driver with 3.5″ voice coil
  • HF: 1.5″ exit, 2.8″ voice coil, compression driver
• Nominal Impedance: 8 Ω
• Cross-over: Full-range only 1.55 kHz
• Input Connectors: (2) NL4, (1) barrier strip
• Dimensions (W x H x D): 16.5″ x 28.2″ x 17.5″ (420 x 716 x 445 mm)
• Net Weight: 68 lbs. (31 kg)
• Shipping weight: 75 lbs. (34 kg)
