QSC LA112 12-in Two-way Active Line Array Loudspeaker

The LA112 is a next-generation, intelligent active line array loudspeaker, combining cutting-edge innovation, refined engineering, and effortless usability. Delivering superior audio performance and exceptional system intelligence, it suits everything from simple portable setups to demanding networked AV productions. With intuitive deployment options, advanced rigging, and Dante network integration, it’s ideal for entertainers, installers, and production companies seeking reliable, high-performance sound solutions.

Key Features:

• Premium Audio Performance:
  Lightweight neodymium 12-inch woofer and dual 1.75-inch HF drivers deliver up to 136 dB peak SPL with exceptional clarity and minimal distortion across a 58 Hz – 20 kHz range.
• Innovative System Intelligence:
  QSC LEAF waveguide ensures uniform 90° x 15° coverage, while AWARE system intelligence and SysNav App simplify setup, control, and array optimisation.
• Versatile Deployment Options:
  Flown (up to 6 units), ground-stacked, or pole-mounted with RapidDeploy rigging for tool-free adjustment and seamless integration into networked audio systems with Dante compatibility.

Specifications:

• Configuration: Two-way active line array loudspeaker
• LF Transducer: 12-inch (305 mm) woofer
• HF Transducers: 2x 1.75-inch (44 mm) compression drivers
• Frequency Response (-6 dB): 58 Hz – 20 kHz
• Frequency Range (-10 dB): 53 Hz – 20 kHz
• Coverage: 90° horizontal x 15° vertical
• Maximum SPL: 136 dB peak @ 1m
• Amplifier Power: 2400 W peak (1600 W LF / 800 W HF)
• Controls: Rotary encoder, Menu/ID buttons, full-colour display

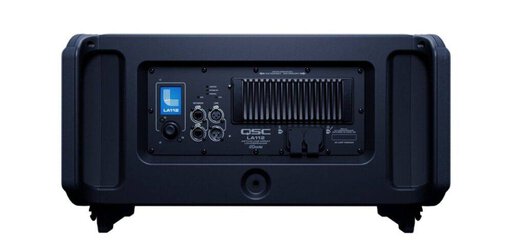

• Connectors: XLR (In/Thru), 2x RJ45 EtherCON (Dante), PowerCON TRUE1 (AC In/Out)
• Power Input: 100–240 VAC, 50–60 Hz
• Enclosure: Impact-resistant ABS with powder-coated steel grille
• Dimensions (H × W × D): 392 x 630 x 417 mm
• Weight: 21.4 kg (47.2 lb)
• Supplied Accessories: PowerCON TRUE1 power cable
• Certifications: UL, CE, FCC Class A
