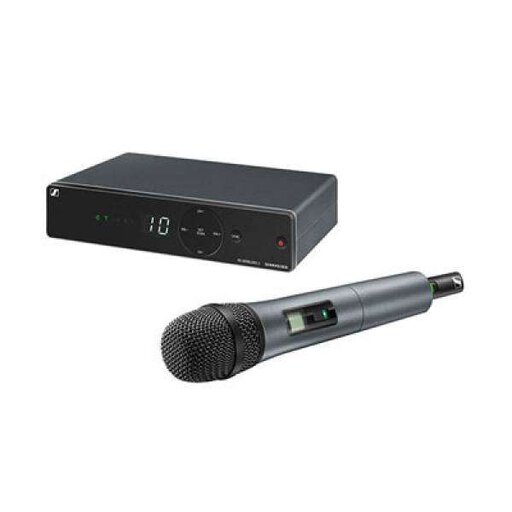

Sennheiser XSW 1-835 Wireless Microphone System

Full Description

Effortless setup, instant performance

The hallmark of the Sennheiser XSW 1-835 Vocal Set is its user-friendly design, offering automatic frequency management and synchronisation. This intelligent system makes finding a clear channel straightforward, significantly reducing the time and technical knowledge needed to start. Ideal for performers of all experience levels, it allows you to focus more on your presentation or performance and less on the technical setup. This feature, combined with the ability to run ten transmitters simultaneously, underscores the system’s versatility for events of any scale.

Vocal clarity that stands out

At the core of the Sennheiser XSW 1-835 Vocal Set is the dynamic 835 capsule, renowned for its ability to produce high-quality speech and vocals. This mic capsule ensures that your voice is captured with unparalleled clarity and detail, whether you’re speaking to an audience or singing. The capsule’s design emphasizes the nuances of your voice, making sure that every word and note is conveyed with the intended emotion and clarity, thus enhancing the overall impact of your performance.

Stable connection, uninterrupted delivery

Stability is critical during live performances, and the Sennheiser XSW 1-835 Vocal Set excels in this aspect with its antenna-switching diversity reception. This advanced technology automatically selects the best signal, ensuring a stable and continuous connection without the fear of dropouts or interference. Integrated antennas further simplify the system’s setup, offering peace of mind to performers that their delivery will be smooth and uninterrupted, allowing full immersion in the performance without technical concerns.

Adaptable to every performance scenario

The Sennheiser XSW 1-835 Vocal Set is designed for adaptability, featuring a wide range of selectable UHF frequencies. This flexibility ensures that you can find a clean, clear frequency regardless of venue size or location, adapting seamlessly to any performance environment. The capacity to use up to ten compatible channels simultaneously offers the freedom to scale your audio setup as needed, making it an ideal choice for professionals seeking a reliable, versatile audio solution that can grow with their needs.

In the box

• 1 x EM-XSW 1 Receiver
• 1 x SKM 835-XSW Handheld Transmitter
• 1 x MZQ 1 Microphone Clip
• 1 x NT CW Power Supply
• 2 x AA Batteries

Features

• UHF wireless system for speakers and vocalists
• Antenna-switching diversity reception to avoid interference and dropouts
• Integrated antennas for increased signal stability
• Automatic frequency management and transmitter synchronization for easy setup
• Selectable UHF frequencies within a large bandwidth to switch to clean frequencies easily
• Expandable with up to 10 simultaneous transmitters thanks to 10-channel design
• Streamlined interface for fast navigation
• Great for live music venues, houses of worship, and conference halls

Specifications

• Frequency Range: 863MHz – 865MHz, E Band
• Switching Bandwidth: Up to 24MHz
• Frequencies: 8 Banks with 10 Factory-Preset Channels
• Signal-to-Noise Ratio: ≥103dBA
• THD: Less than 0.9
• Transmitter Synchronisation: 2.4GHz

EM-XSW 1 Receiver

• Receiver Principle: Double Superheterodyne
• Diversity Principle: Antenna Switching Diversity via Internal Antennas
• Sensitivity: less than 3μV at 52dB(A)rms S/N
• AF Frequency Response: 50Hz – 16kHz, -3dB
• Audio Output Connectors:
  • Unbalanced: 1/4” (6.3mm) Jack
  • Balanced: XLR
• Maximum AF Output:
  • Unbalanced: +6dBu
  • Balanced: +12dBu
• Audio Adjustment Range: 45dB, Adjustable in 5dB Steps
• Squelch: Adjustable from 3dBμ to 28dBμ (Combined with Pilot Tone)
• Line/Mic Level: 20dB, Switchable
• Power Supply: 12V DC
• Housing Material: Rugged ABS Housing
• Dimensions: 200mm x 42mm x 127mm (W x H x D)
• Weight: 340g

SKM 835-XSW 1 Microphone

• Microphone Type: Dynamic
• Pick-Up Pattern: Cardioid
• Frequency Response: 80Hz – 16kHz
• Input Sensitivity: 1.5mV/Pa
• Adjustment Range of Sensitivity: 0dB to -30dB, Adjustable in 10dB Steps
• RF Output Power: 10mW
• Power Supply: 2 x AA Batteries, 1.5V
• Operating Time: Approx. 10 Hours
• Housing Material: Rugged ABS Housing
• Dimensions: 260mm x 50mm
• Weight: 245g
