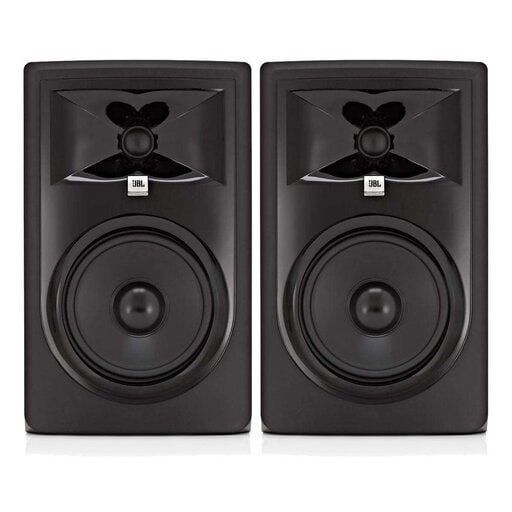

JBL 306P MKII Studio Monitor, Pair

Studio clarity and power

The latest in the LSR series from JBL, refining the original design and adding a range of new features and enhancements. The 6-inch active bi-amplified design ensures optimal audio performance, with dedicated custom Class-D amplifiers providing 112W of power both the HF and LF range.

Comprised of a long-throw 6-inch woofer for a powerful, defined low-end the monitor is ready for action. The 1-inch Neodymium tweeter provides sparkling, detailed highs. Redesigned circuitry and application of the latest manufacturing principles results in improved sound performance, resulting in an immersive stereo field and a broad sweet. The accuracy and clarity it produces captures every nuance of your source audio.

It utilises the patented Image Control Waveguide from JBL, providing exceptional clarity and a wide, room-friendly sweet spot.

The result is a crisp, transparent sound that is ideal for mixing and mastering applications, giving you a true representation of your sound that will translate to other mediums.

New boundary EQ settings

One of the new features of the 306 MKII is the inclusion of Boundary EQ settings. This gives you the ability to further attenuate your unintended low end frequencies, which can occur when the monitor is placed on a desktop or near a wall.

This allows you to change the way the monitor responds for optimised audio performance, even in confined spaces. This is accompanied by a 3-position HF trim switch for adjusting the high-frequency response for added attenuation control. Being able to tune your monitor to your room is integral to getting that studio sound.

Sleek design, versatile connectivity

Building on the success of the original LSRs, JBL has retained the same stylish and sleek aesthetic, as well as ensuring maximum reliability. The 3-series monitors have to pass JBL’s demanding Power Test.

It also boasts flexible connectivity, allowing you to use the monitors with audio interfaces and more. Balanced XLR and ¼-inch TRS inputs allow you to communicate with a wide range of equipment from interfaces to mixers and more.

The inputs also feature adjustable sensitivity, allowing you to select between +4dBu/-10dBV for optimised audio performance and signal integrity.

Features

• Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
• Next-generation JBL transducers for optimized transient response and improved linearity
• Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
• Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
• New Boundary EQ settings compensate for low frequency variants introduced by the environment
• HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
• Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
• Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test ensures years of reliability
• Sleek, modern design provides a visual upgrade to any studio

Specifications

• LF Driver Size: 165mm (6.5-inch)
• HF Driver Size: 25mm (1-inch)
• HF Driver Type: Soft dome
• Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
• OK For Use Near Magnetically Sensitive Equipment: Yes
• Input Sensitivity (-10dBV Input): 92dB / 1m
• Power Configuration: Bi-amplified
• HF Drive Power Amp: 56W, Class-D
• LF Driver Power Amp: 56W, Class-D
• Frequency Response (±3dB): 47Hz – 20kHz
• Frequency Range (-10dB): 39Hz – 24kHz
• Low Frequency Extension(-10dB) : 39Hz
• Maximum Continuous SPL: 92dB
• Maximum Peak SPL: 110dB
• Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
• System Distortion Criteria:
• Electrical Distortion Criteria: 0.2 percent THD @ 1kHz / 2.83VRMS output;
• Signal To Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Horizontal x Vertical: 120-degrees x 90-degress
• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
• AC Input Voltage: 100 – 240VAC (±10 percent), 50 / 60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-moulded structural ABS
• Cabinet Dimensions (H x W x D): 361 x 224 x 282mm (14.2″ x 8.8″ x 11.1″)
• Display Carton (H x W x D): 408 x 285 x 328mm (16.1″ x 11.2″ x 12.9″)
• Shipping Carton (H x W x D): 418 x 292 x 338mm (16.5″ x 11.5″ x 13.3″)
• Net Weight: 6.1 kg (13.42 lbs)
• Shipping Gross Weight: 7.25 kg (15.95 lbs)
