Full Description
High spec drivers

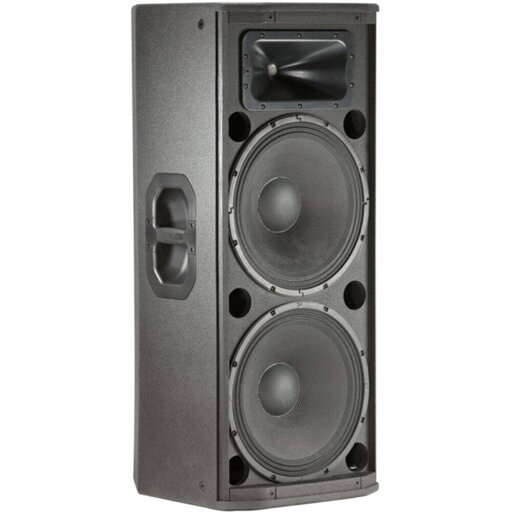

The PRX425 is comprised of two 15-inch woofers with combined power handling of 600 watts (continuous). For the high frequencies, 2414H-C 1-inch polymer diaphragm, compression driver is mounted to a 90-degree x 50-degree horn. The 90-degree coverage angle of the PRX425 is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow placement of multiple speakers without excessive overlap.
Robust design
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Features
- Dual 15″ two-way design
- 90-degree x 50-degree coverage
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex enclosure finish
- SonicGuard protects the highfrequency driver from excess power without interrupting the performance
Specifications
- Frequency Range (-10 dB): 48 Hz – 19 kHz
- Frequency Response (+3 dB): 61 Hz – 16 kHz
- Coverage Pattern: 90-degree x 50-degree nominal
- System Sensitivity: 100 dB SPL (1w@1m)
- Power Rating, Pink Noise: 600 W / 1200 W / 2400 W (Continuous/Program/Peak)
- Rated Maximum SPL: 134 dB SPL peak
- Nominal Impedance: 4 ohms
- Dimensions (H x W x D): 1044 mm x 429 mm x 521 mm (41.1″ x 16.9″ x 20.5″)
- Net Weight: 33.5 kg (74 lbs.)
